Painting Hood & Cabinet System by Diversified Woodcrafts, 8200M - Stock #38649

Save 55% on MSRP of $12,810.00

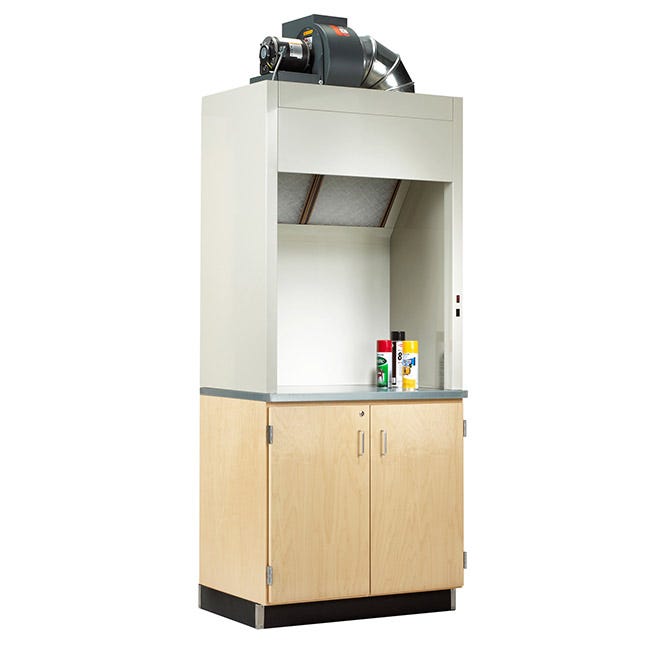

The Painting Hood & Cabinet System by Diversified Woodcrafts is fabricated of 18-gauge steel with a corrosion resistant, powder coat baked epoxy finish. The upper booth enclosure includesa standard vapor-proof light as well as two filters set in aneasy-to-change flange bracket system. The globed interior light ismounted and wired to a common junction box. The light fixture isshipped with bulbs, standard. The blower motor operates atan RPM designed to provide 100 LFM and approximately 3/4”of static pressure. The blower will be mounted on top and wiredto the common junction box. The transition piece from the boothto blower is provided and connected. Both the light and theblower can be pre-wired to switches in the front post area of thebooth when required.

  • The booth must be connected to duct work (not provided)
  • 1/3 Horsepower motor requires a 125 volt, 20 amp circuit hard wired into a junction box
  • Blower motor operates at an RPM designed to provide 100 LFM and approximately 3/4'' of static pressure
  • The Paint Booth is fabricated of 18 gauge steel with corrosion resistant, powder coat baked epoxy finish
  • The paint booth comes with a maple double door base cabinet with locking doors and an adjustable shelf
  • Finished with a durable earth-friendly UV finish
  • Includes two easy to change filters for air quality
  • Includes a Globed interior light vapor-proof light
  • Cabinet should be secured to the wall for safety, Mounting hardware is not included
  • Minimal assembly required
  • Made in the USA

Order Now

Choose Quantity

Add to Wish List     |     Add to Compare
  • Normal Ship Time:
    Approx. 12 weeks to 14 weeks
  • Please add 2-5 business days for transit time
When will my order deliver?
  • Warranty:
    Limited Lifetime
  • Weight:
    660 pounds
  • Overall Dimensions:
    36" W x 24" D x 97-3/4" H
  • Warranty:
    Limited Lifetime
  • Weight:
    660 pounds
  • Overall Dimensions:
    36" W x 24" D x 97-3/4" H
